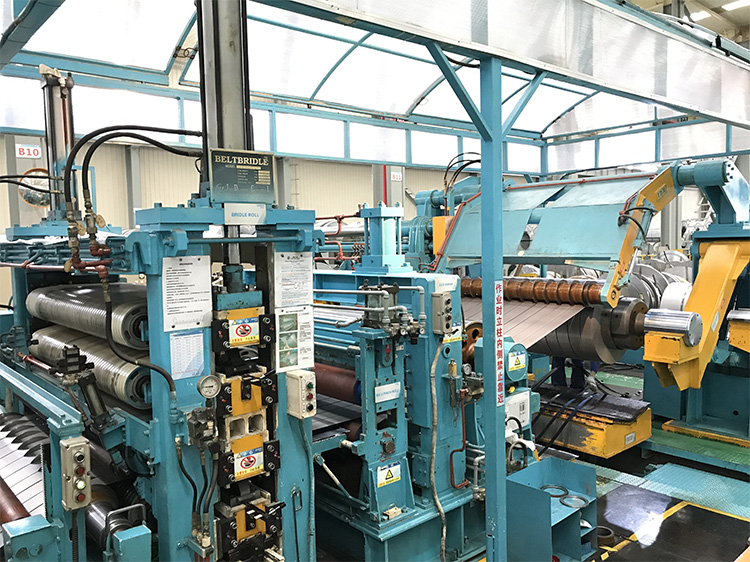

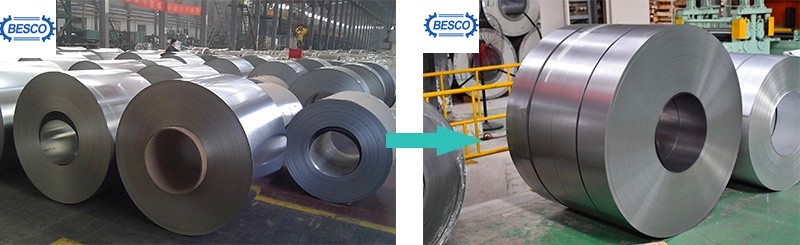

 A slitting line, also called CNC steel slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.Metal Slitting Machine can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

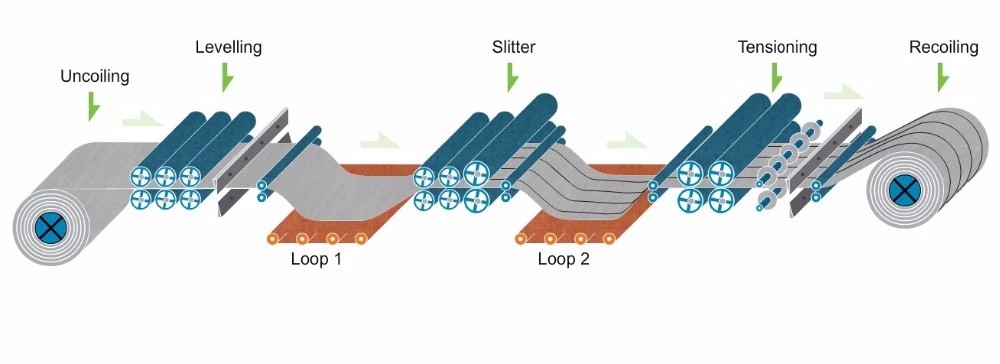

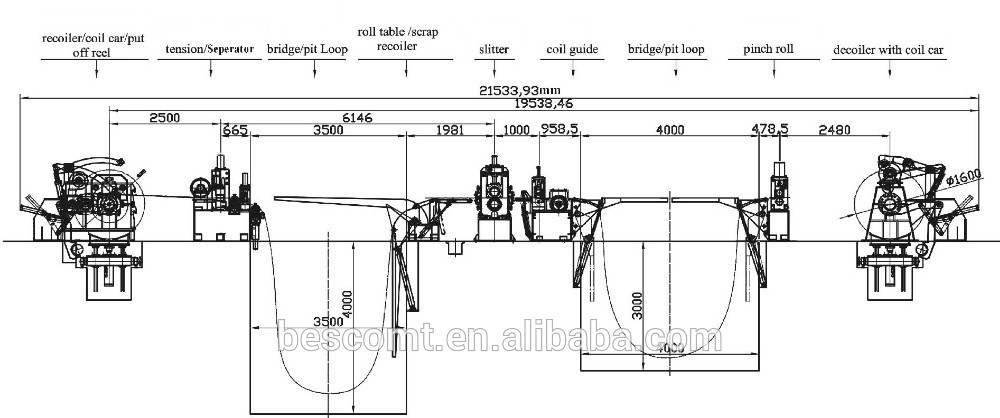

Components of this production line:
1.Loading coil car
2.Uncoiler  3.straightener device  4.Pinch roll&leveler & hydraulic shearer  5.Loop pit  6.Side guide  7.Slitter  8.Transition platform & scrap winder  9.Loop pit  10.Tension station  11.Recoiler  12.Unloading coil car

Model	Thickness	Width	Coil weight	Width of finished product	number of slit	Slit speed	area need	blade diameter
3*1300	0.5-3mm	900-1300mm	30T	>40	<13	80m/min	21*11m	240
4*1300	0.5-4mm	900-1300mm	30T	>40	<13	80m/min	22*11m	240
6*1600	1-6mm	90-1300mm	30T	>40	<10	50m/min	22*13m	240

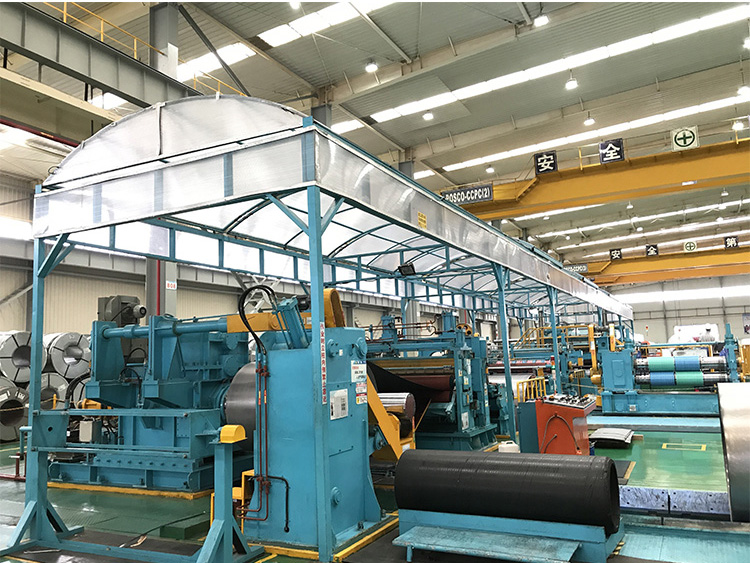

Main Features This equipment is a production line composed of feeding trolley, uncoiling, feeding, slitting machine of disc blade, slitting machine, winding machine, unloading trolley, control system, etc. Its main function is to cut a wide metal coil into several strips of required width along the direction of length.Prepare blank for stamping, cold bending and other processes.By adjusting the distance between the upper and lower cutter shafts to adapt to the plates of different thicknesses, changing the spacer ring and spacer sleeve of blades of different specifications can be cut into strips of different widths.
Certifications Detailed Images

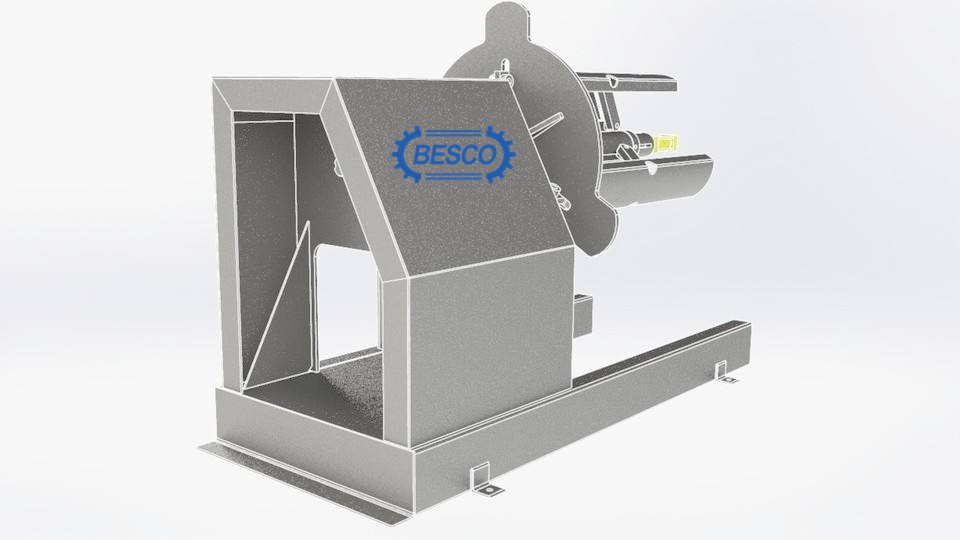

   Uncoiler

The coil can be opened and the end of the rolling piece can be smoothly drawn out to allow it to enter the rear operating unit.

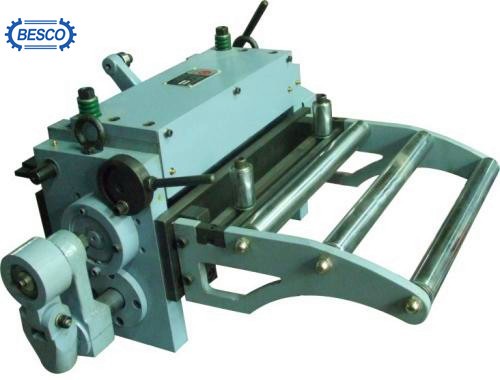

Feeding
Selecting a reasonable ac servo system can meet the requirements of quick response, high speed accuracy and strong robustness of the control system. The actual application position control accuracy is about 0.1mm and can avoid accumulated errors.

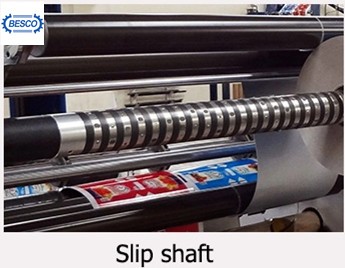

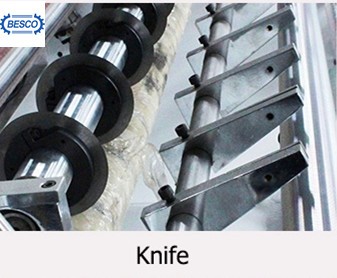

Slitting
1. Application: it is suitable for longitudinal shearing of metal strip material and rewinding the narrow strip after cutting into coils.
2. Advantages: easy operation, high cutting quality, high material utilization rate, stepless cutting speed regulation and other characteristics.

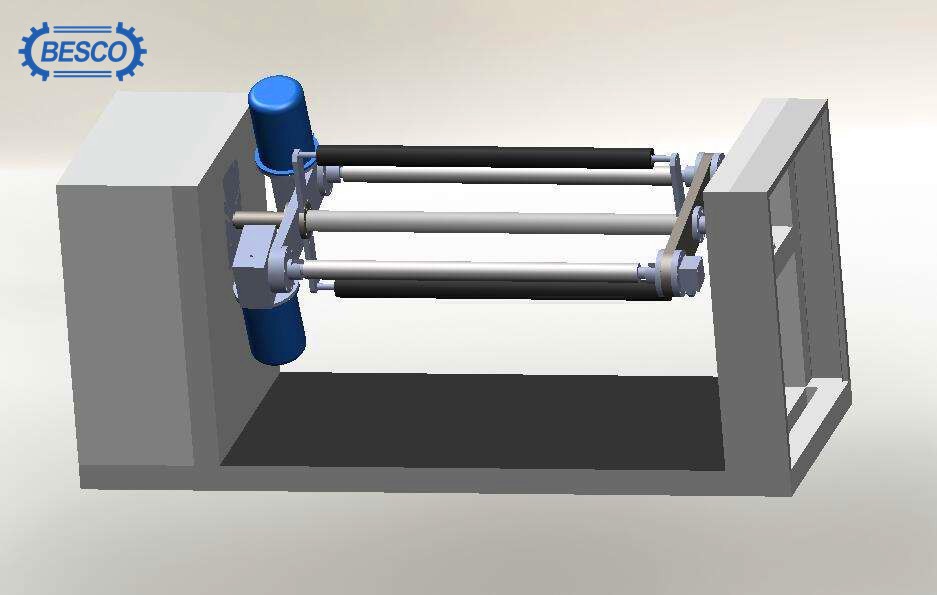

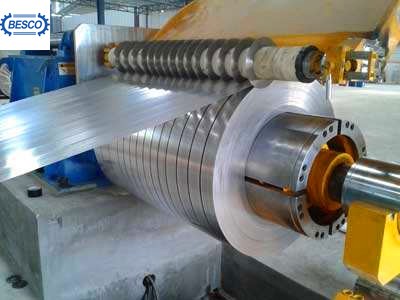

Recoiler
Put away the slitting material coil, which has the characteristic of high efficiency and fast

Our Service Pre-Sales Service * Technical solution
* Online video authentication machine work.
* Cutting samples provided by Business express
After-Sales Service
* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it's necessary, Buyer should send regular his technical staff to Supplier for technical training.
our customers Packing & Delivery

Packaging
Size	3000mm*2500mm*1200mm
Weight	15Ton
Packaging Details	We packed the machines in wooden cases and fixed them in wooden cases to ensure the integrity of the machines.

FAQ Q: How long is your delivery time?

A: That depend on the stocks.


Q: What is your terms of payment ?

A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.


If you have another question, please feel free to contact us as below:

Related Products Prop sleeve line machine 96.7% Response Rate

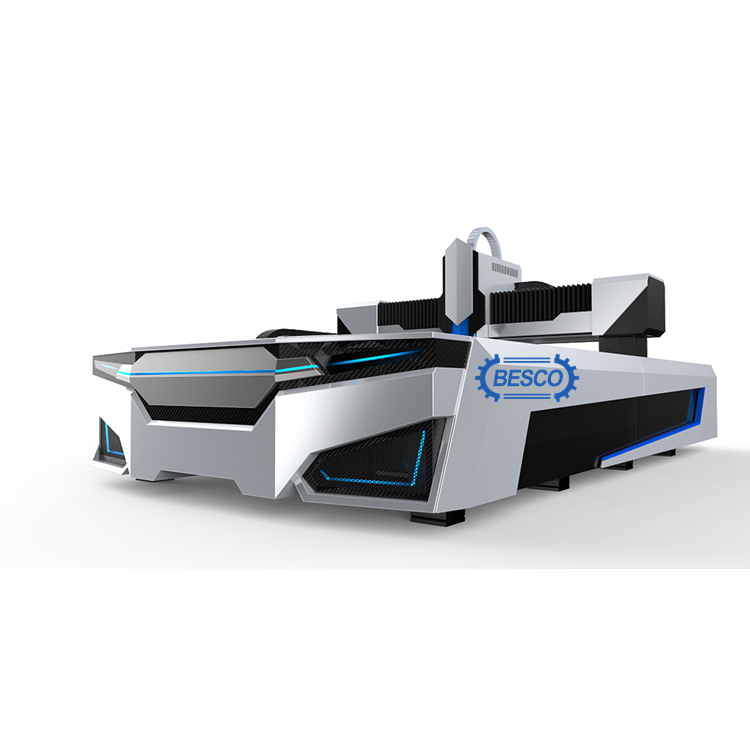

Fiber Laser cutting Machine 98.4% Response Rate Fully auto Aluminum foil container making machine 98.9% Response Rate
