Automatic Mgo board production line / Gypsum board laminating machine /decorative wall tile machine
Product Description
Product Description Mgo board production line
Mgo board machine adopts the automatic template device to save the labour cost. It also adopts automatic coating release agent system, by this way the release agent is evenly, less dosage and clean. Roller and forming roller precision is high that makes the board uniform thickness and smooth. Automatic cutting film system adopts fixed length cutting method, cutter does not hurt the template.

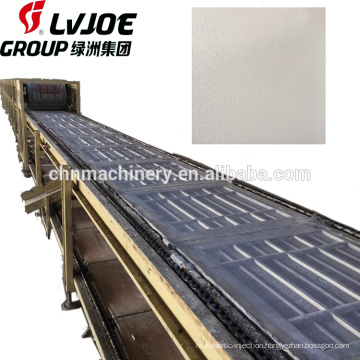

Automatic MgO board production line
1. Production Line
mgo board making machine can produce all kinds of magnesium oxide boards, they can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board, flake board, MDF (Medium Density Fiberboard ) and Gypsum Board. It is really environment product and lower cost.
2. Raw material and cost analysis
The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily for customers.
3. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.
4. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale. Our all equipment can produce board with same quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will. The standard specification of the board is 1.22mX2.44m.
5. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service for a long time, the equipment warranty period is one year.
Detailed Images Gypsum board laminated based on paper faced plasterboard, with special technology that laminating film on surface with sticking and pressing. The visual effect is peculiar and will be suitable for personalized decoration need.
Production feature:
1.Healthy and environmental
2.Various pattern, plentiful texture and complete color
3.No dust fall, moistureproof, mould proof
4.Easy to clean and maintain
5.Easy to operate and no need of second decoration
PVC Laminated Gypsum board laminating machine
Chief Introduction:
This machine adopts latest coating and laminating technology, and is to laminate the functional or decorative films with the board together. The whole machine is in synchronous way.
Technical parameter:
Usage:
Gypsum ceiling board is laminated PVC film in front side and aluminum film in back side of paper faced gypsum board. The features are waterproof, moisture proof, flame resistant, thermal insulation,radiation proof, anti-sagging, non-deformed, etc.
Flowchart Of Full-automatic Laminating Machine
Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)
Brief Introduction for Process Flow of Calcium silicate board production line
Slurry preparation
1. Put cement, quartz powder, pulp, and other raw materials with water (controlled by Φ4000 backwater tank) in the pump beater. All material will be mix up in here continuously until reach the standard.
2. Transfer slurry to bucket slurry storing pool, and keep the mixing process to keep the consistency. After that, slurry will be pour on the running carpet, dehydrate through the vacuum chamber, compact and roll on the forming roller. The layer of the slurry will keep adding the thickness and dehydration. Thus, basic format of the board formed, called slab.
3. The left over liquid after the dehydration process will be collected and pump back to the mixed water tank for reuse. After the precipitation, sediment will be sent back to the pump beater with raw material for reuse. Mixing water will also sent back for adjust the consistency of the slurry. Clear water will use for washing the running carpet.
4. Detach slab from the forming roller, and longitudinal shearing machine will be used in here to cut both side of the slab.
5. There are two Hydraulic vacuum stackers attached on the three-position hydraulic vacuum loader for attaching a mold to the slab. They move synchronously to finish this cycle. Step one, stacker one picks a mold from mold trolley. Step two, lifting platform will push those two stackers up and down. Stacker one drops the mold on the steam trolley, and the cutting blade which attached before the stacker two will trim horizontal sides of the slab. Stacker two picks up a slab from the conveyor. Step three, stacker two puts the slab on the stream trolley, and stacker one goes back to mold trolley for picking the next mold.
6. Waste edge which cut from the slab will be sent back to back material mixer. After mixing, it will be reused.
7. Slab on the steam trolley now will be settled to the steam curing room for mold detachment.
8. Mold detacher will separate slab and mold, a certain amount of slab will put on a steaming plate for autoclave.
9. Autoclave cycle.
10. After autoclave, slab will start the drying process, which extracts all the extra water content.
11. Sanding and grinding machine will handing the next process, to finish the slab to the factory specifications
12. After the test qualified, calcium silicate board now is done.
Certification
Packing & Delivery
Tina Tel: 86 159 324 888 03 Contact us if you need more details on Mgo board production line. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gypsum board laminating machine、decorative wall tile machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Mgo board machine adopts the automatic template device to save the labour cost. It also adopts automatic coating release agent system, by this way the release agent is evenly, less dosage and clean. Roller and forming roller precision is high that makes the board uniform thickness and smooth. Automatic cutting film system adopts fixed length cutting method, cutter does not hurt the template.
Automatic MgO board production line
1. Production Line
mgo board making machine can produce all kinds of magnesium oxide boards, they can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board, flake board, MDF (Medium Density Fiberboard ) and Gypsum Board. It is really environment product and lower cost.
2. Raw material and cost analysis
The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily for customers.
3. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.
4. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale. Our all equipment can produce board with same quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will. The standard specification of the board is 1.22mX2.44m.
5. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service for a long time, the equipment warranty period is one year.
Detailed Images Gypsum board laminated based on paper faced plasterboard, with special technology that laminating film on surface with sticking and pressing. The visual effect is peculiar and will be suitable for personalized decoration need. Production feature:
1.Healthy and environmental
2.Various pattern, plentiful texture and complete color
3.No dust fall, moistureproof, mould proof
4.Easy to clean and maintain
5.Easy to operate and no need of second decoration
PVC Laminated Gypsum board laminating machine
Chief Introduction:
This machine adopts latest coating and laminating technology, and is to laminate the functional or decorative films with the board together. The whole machine is in synchronous way.
Technical parameter:
Gypsum ceiling board is laminated PVC film in front side and aluminum film in back side of paper faced gypsum board. The features are waterproof, moisture proof, flame resistant, thermal insulation,radiation proof, anti-sagging, non-deformed, etc.
Flowchart Of Full-automatic Laminating Machine
Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)
Brief Introduction for Process Flow of Calcium silicate board production lineSlurry preparation
1. Put cement, quartz powder, pulp, and other raw materials with water (controlled by Φ4000 backwater tank) in the pump beater. All material will be mix up in here continuously until reach the standard.
2. Transfer slurry to bucket slurry storing pool, and keep the mixing process to keep the consistency. After that, slurry will be pour on the running carpet, dehydrate through the vacuum chamber, compact and roll on the forming roller. The layer of the slurry will keep adding the thickness and dehydration. Thus, basic format of the board formed, called slab.
3. The left over liquid after the dehydration process will be collected and pump back to the mixed water tank for reuse. After the precipitation, sediment will be sent back to the pump beater with raw material for reuse. Mixing water will also sent back for adjust the consistency of the slurry. Clear water will use for washing the running carpet.
4. Detach slab from the forming roller, and longitudinal shearing machine will be used in here to cut both side of the slab.
5. There are two Hydraulic vacuum stackers attached on the three-position hydraulic vacuum loader for attaching a mold to the slab. They move synchronously to finish this cycle. Step one, stacker one picks a mold from mold trolley. Step two, lifting platform will push those two stackers up and down. Stacker one drops the mold on the steam trolley, and the cutting blade which attached before the stacker two will trim horizontal sides of the slab. Stacker two picks up a slab from the conveyor. Step three, stacker two puts the slab on the stream trolley, and stacker one goes back to mold trolley for picking the next mold.
6. Waste edge which cut from the slab will be sent back to back material mixer. After mixing, it will be reused.
7. Slab on the steam trolley now will be settled to the steam curing room for mold detachment.
8. Mold detacher will separate slab and mold, a certain amount of slab will put on a steaming plate for autoclave.
9. Autoclave cycle.
10. After autoclave, slab will start the drying process, which extracts all the extra water content.
11. Sanding and grinding machine will handing the next process, to finish the slab to the factory specifications
12. After the test qualified, calcium silicate board now is done.
Certification
Packing & Delivery
Tina Tel: 86 159 324 888 03 Contact us if you need more details on Mgo board production line. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Gypsum board laminating machine、decorative wall tile machine. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Decoration gypsum ceiling tile prodution line
