Electronic industrial perforating machine

  • Electronic industrial perforating machine
  • Electronic industrial perforating machine
  • Electronic industrial perforating machine
  • Electronic industrial perforating machine

Electronic industrial perforating machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 10 Days
    Packaging: fumigation wooden crate
    Productivity: 3000sets /month
    Brand: Chache
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 3000sets
    Certificate: ISO9001 CE
    HS Code: 8452219000
    Port: Yantian

Basic Info

Model No.: CC-3020-cf

Product Description

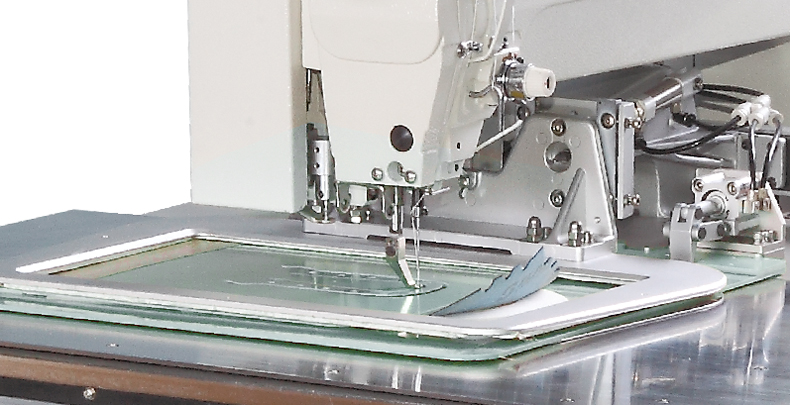

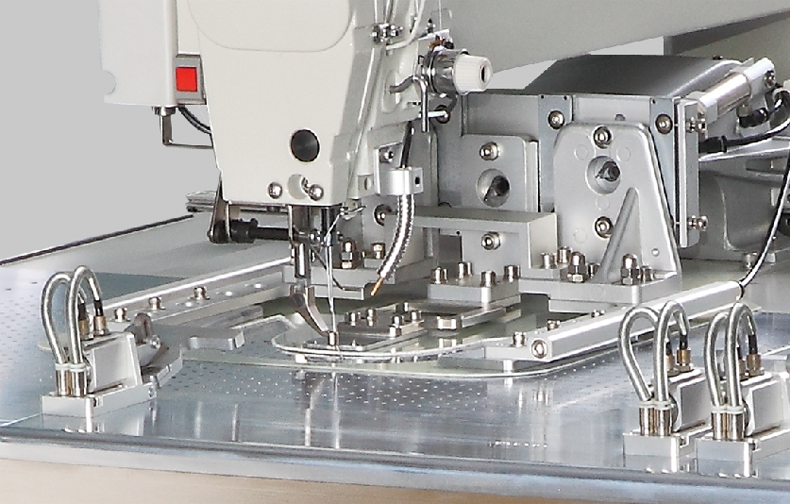

Industrial holing and sewing machine of Chache brand with multi-function, can punch the hole and sew together
  • Hole punching and sewing machine with LCD color touch control panel optional, brother control system
  • 2 in 1 working step, save the working time and easy to operate
  • Support customized shape and size
  • easy to be moved,convenient to creat and edit program and with flip-flop device optional
  • Accurate sewing finishes for extra-heavy materials
  • Shoe sewing machine, leather sewing machine, industrial sewing machine, computerized sewing machine, footwear sewing machine, automatic sewing machine


Model CC-3020G-01A-CF
Punching head 1 heads, standard circle(1.2-3.8mm)
Line single needle sewing
Highest sewing speed 2700rpm
Highest punching speed 1000rpm
Feeding device Intermittent feeding (pulse motor driven mechanism)
Stitch length 0.05-12.7mm
Max.stitches 20,000 stitches/pattern
Work clamp lifter pnuematic (height:max.30mm)
Clamp lifter all in one
Clamp lifter ascensional range 22mm
Hook double shuttle hook
Tension device electric tension device
Data storage USB or Memory card(CF card can save and edit any sewing patterns)
Motor AC servo motor 550W
Air pressure 0.5Mpa 1.8L/min
Net weight 220kg
Gross weight 290kg
Packing 126*126*135cm
CBM 2.14m³

shoe loop sewing machine

shoe lace sewing machinehole punching machineautomatic shoe sewing machinesportshoe sewing machine
