250T Metal Steel Press Brake,Plate Steel Press Brake,hydraulic press brake

Product Description

Hydraulic Press Brake Introduce( 250T Metal Steel Press Brake,Plate Steel Press Brake,hydraulic press brake)

Machine Body

The machine body is in an overall processed structure and ANSYS finlte element analysis software  is applied to main parts of the machine body for analysis,which has ensure the reliability of machine tool and the precision of the entire machine.

Oil Cylinder

Electrohydraulic servo valve imported from Germany and imported grating ruler is adopted for the main oil cylinders on both sides,to brake through the stroke control pattern of traditional bending machines of mechanical stopper type,typical of high feedback precision for position of gliding block,accurate and stable operation,good synchronizing performance and high repeated positioning precision of gliding block.

Rear Stopper

Imported parts are used for all the functional parts in the rear stopper to ensure the stopper percision and the mechanism of real stopper will multiple stopping shafts for more complete function is employed up to customer requirement.

Hydraulic control system

Hydraulic control system import  from germany is adopted for the whole hydraulic system,simplify  the installation of pipelines to ensure stable operation as well as simple and nice appearance of the  machine tool.

Grating Ruler

C-shaped plates are fitted on both sides of the machine body,the high precision grating rule is  mounted on the C-shape plates,thus to avoid the infuence over pending precision arising from distortion of machine body during bending process.

Deflection Compensation

The lower workbench is fitted with automatic compensation mechanism for hydraulic deflection,to achieve high bending precision and long guaranteed.   Hydraulic press brake parameter

Type

Nominal Pressure

(KN)

Length of Table

(mm)

Distance between Housings

(mm)

Throat Depth

(mm)

Stroke

(mm)

Open

Height

(mm)

Main

 Motor(KW)

WC67Y-63/2500

     630 2500

2050

250 100 335 5.5

WC67Y-63/3200

    630 3200

2670

250 100 335 5.5

WC67Y-63/4000

    630 4000

3300

250 100 350 5.5

WC67Y-80/2500

    800 2500

2050

250 100 335 7.5

WC67Y-80/3200

    800 3200

2660

250 100 335 7.5

WC67Y-100/2500

   1000 2500

1950

320 140 385 7.5

WC67Y-100/3200

   1000 3200

2650

320 140 385 7.5

WC67Y-100/3600

   1000 3600

3000

320 140 385 7.5

WC67Y-100/4000

   1000 4000

3200

320 140 385 7.5

WC67Y-100/5000

   1000 5000

4200

320 150 420 7.5

WC67Y-125/3200

   1250   3200

2680

320 150 370 7.5

WC67Y-125/3600

   1250   3600

3000

320 150 370 7.5

WC67Y-125/4000

1250 4000

3280

320 150 370 7.5

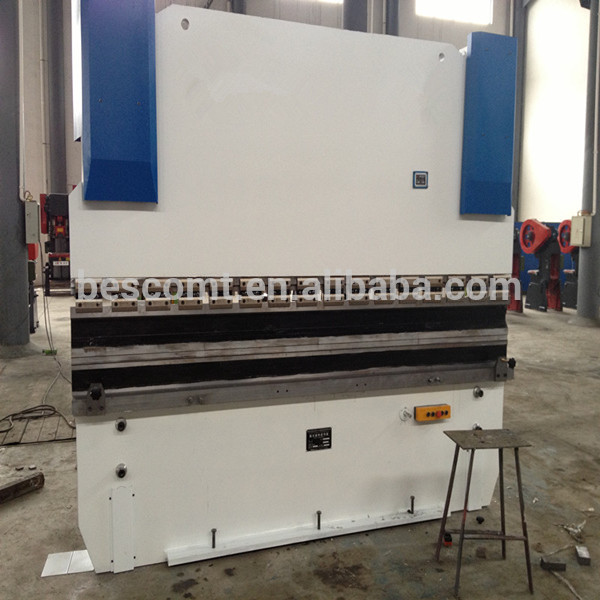

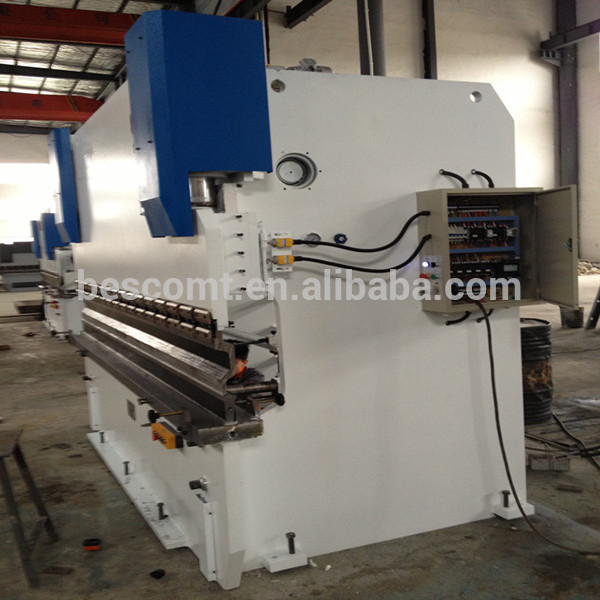

Factory production and processing equipment     Our Company Other Main Products    Hydraulic press brake structure picture Hydraulic Press brake picture

Contact us if you need more details on 250t press brake. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 250t metal steel press brake、plate steel press brake. If these products fail to match your need, please contact us and we would like to provide relevant information.
