2 Million SQM Capacity PVC Laminated Gypsum Ceiling Tile Making Machine

Product Description

  1.Easy to install and take apart   2.Full-automatic and semi-automatic   3.Saving energy and labor cost   4.Fast delivery   Product Description     This  model adopts latest double sides coating and laminating technology, synchronous coating and gluing the front( such as PVC)  and the reverse side (such as aluminium foils)at the same time, without turn-over. Gypsum board lamination machine is to laminate film on gypsum board,the whole machine is in a synchronous way. 1.Capacity:  7000-12000m2 per day (basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board) 2.Automation simple and high degree automatic 3.Main materials Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum 4.Dimension of product Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm   Lamination machine technical parameters:

Model

LV--1300SFM01      LV--1300SFM02      LV--1300SFM03

Max. laminating width

                                       1300mm

Thickness of sheet

                                       5----30mm

Max. Laminating Speed

                                         15m/min

Speed Regulation

Frequency conversion synchronous speed regulating

installed power

8kw                               10kw                                     20kw

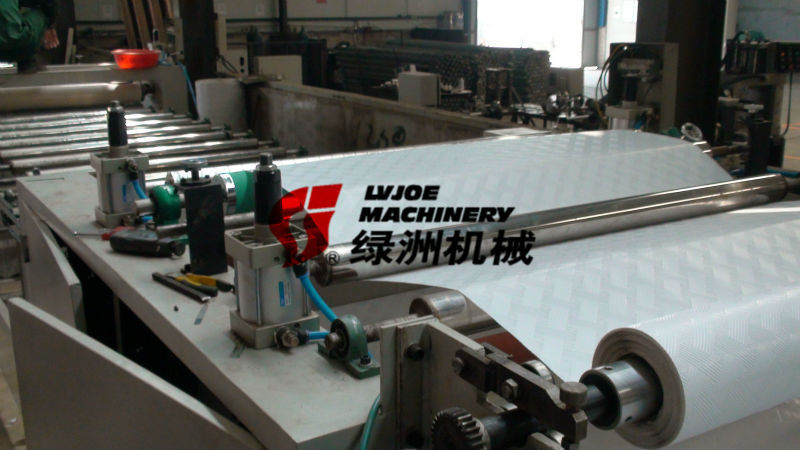

  1. gypsum ceiling board Lamination Machine line:       gypsum board lamination machine is to laminate film on gypsum board      lamination width: 1220mm     gypsum board size: 1220*2440mm     glue: specific glue for pvc film and aluminum foil     max sheet speed: 2/15m/min      thickness of sheet: 2-50mm     motor power: 4.5kw coating and lamination part are driven by chain wheel.                2.   Automatic feeding machine     1. push-type     2. suction-type   Two types for choice  Cylinder push, photoelectric control, Max.Cylinder range 700mm. Through the push board platform rubber roller rolling transmission to accelerate speed,with the feature of low cost,economic and affordable (comparing to the suction type),easy to operate,fully automatic feeding.     3. Automatic cutting machine     This machine is used for cutting the laminated gypsum boards to a size of board according to saw gauge standard. First, put board to delivery roll, then come to the cutting system for the first time, and it turns to cutting system for the second time though delivery roll, then come to the board. It can be made a set of pulsed sack-duster for requirements.      4. Automatic sealing machine    right angle type gypsum board sealing machine  This machine is a gypsum board ceiling decoration edging equipment, PLC photoelectric automatic control, high speed, high capacity. Edging tight and firm. Less investment in equipment and quick. It is a board(plasterboard), Hemming preferred equipment.        5. Automatic shrinking machine    warm shrinking machine doing the heats shrinkable packaging for gypsum board after the  completion of the sealing and cutting edge, using infrared ray heating for the film contraction.    Specification:   Packaging speed: 20m/minutes Weight: 500KG Packaging size: L1200*W700*H300mm Power : 18.75KW      6.electrostatic pulse bag style dust collector 1. Usage:  The machine is used in the dust collector of the automatic cutter of the laminated gypsum board.It equipped with big sized dust exhaust fan and dust exhaust pipe. It can efficiently reach to the purpose of the dust exhausting. 2. Machine composition:  Dust collector frame, one set of main machine, one set of dust collector pipe, one set of dust collector motor,dust collector bag,dedusting frame,pulse controller.     7. laminating pvc pictures show:              Our Services 1) The machine guarantee1 years except the easy worn parts such as bearings,  electric buttons. 2) Our company could dispatch professional engineer to buyer’s factory when the machine arrive at the   destination.  3)Our engineers will train the buyers' worker to operate the machine and after   you master the machine then pay us the installation and commissioning payment.  4) In order to ensure the machine working well, each year we will send engineer   to check and develop the technology.     Packaging & Shipping Standard package for exporting or as your request.     Company Information Established in 1998. A large manufacturer of integrated supply dedicated in researching,manufacturing, trading of building material machinery and construction materials . CE approved by the EU  ISO 9001 certificate  professional team and rich experience, can give you the best price,  the long service life
