Full Line 4 Million Capacity PVC Gypsum Ceiling Board Tile Making Machine

Product Description

  Product Description pvc laminated gypsum ceiling board making machine   Gypsum board lamination machine is to laminate film on gypsum board,the whole machine is in a synchronous way. 1.Capacity:  7000-20000m2 per day (basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board) 2.Automation simple and high degree automatic 3.Main materials Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum 4.Dimension of product Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm     Lamination machine technical parameters:

Model

LV--1300SFM01     LV--1300SFM02    LV--1300SFM03

Max. laminating width

                                       1300mm

Thickness of sheet

                                       5----30mm

Max. Laminating Speed

                                         15m/min

Speed Regulation

Frequency conversion synchronous speed regulating

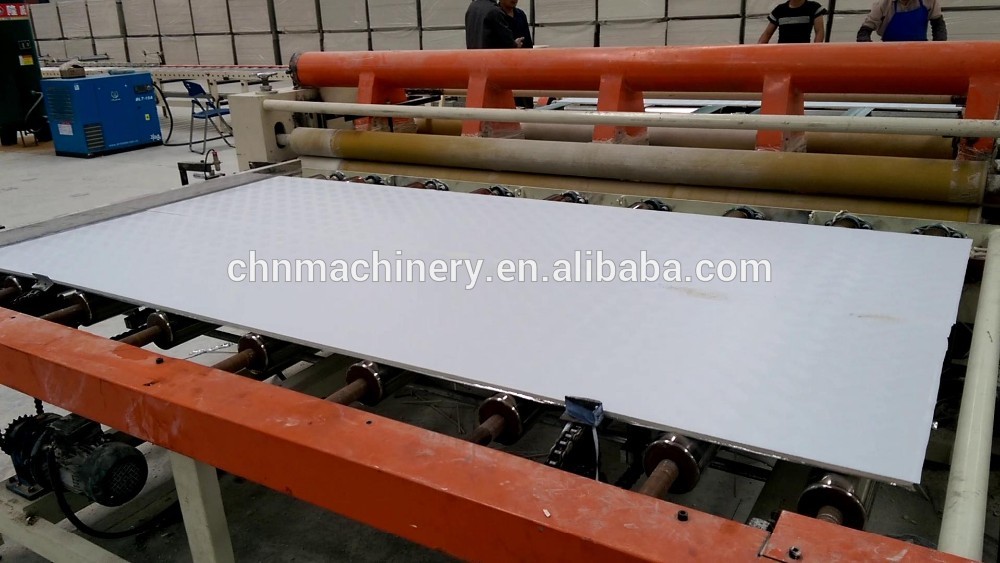

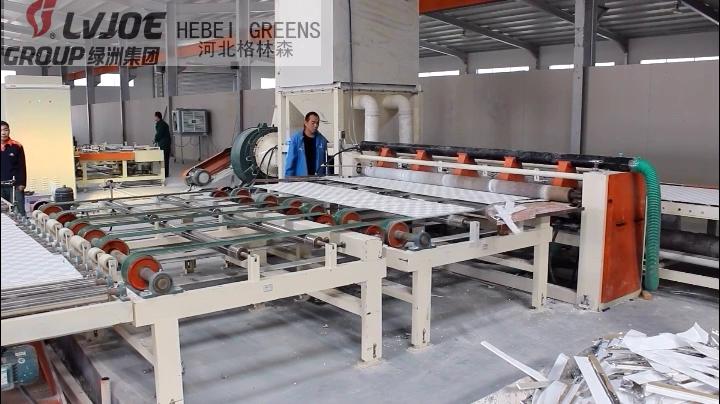

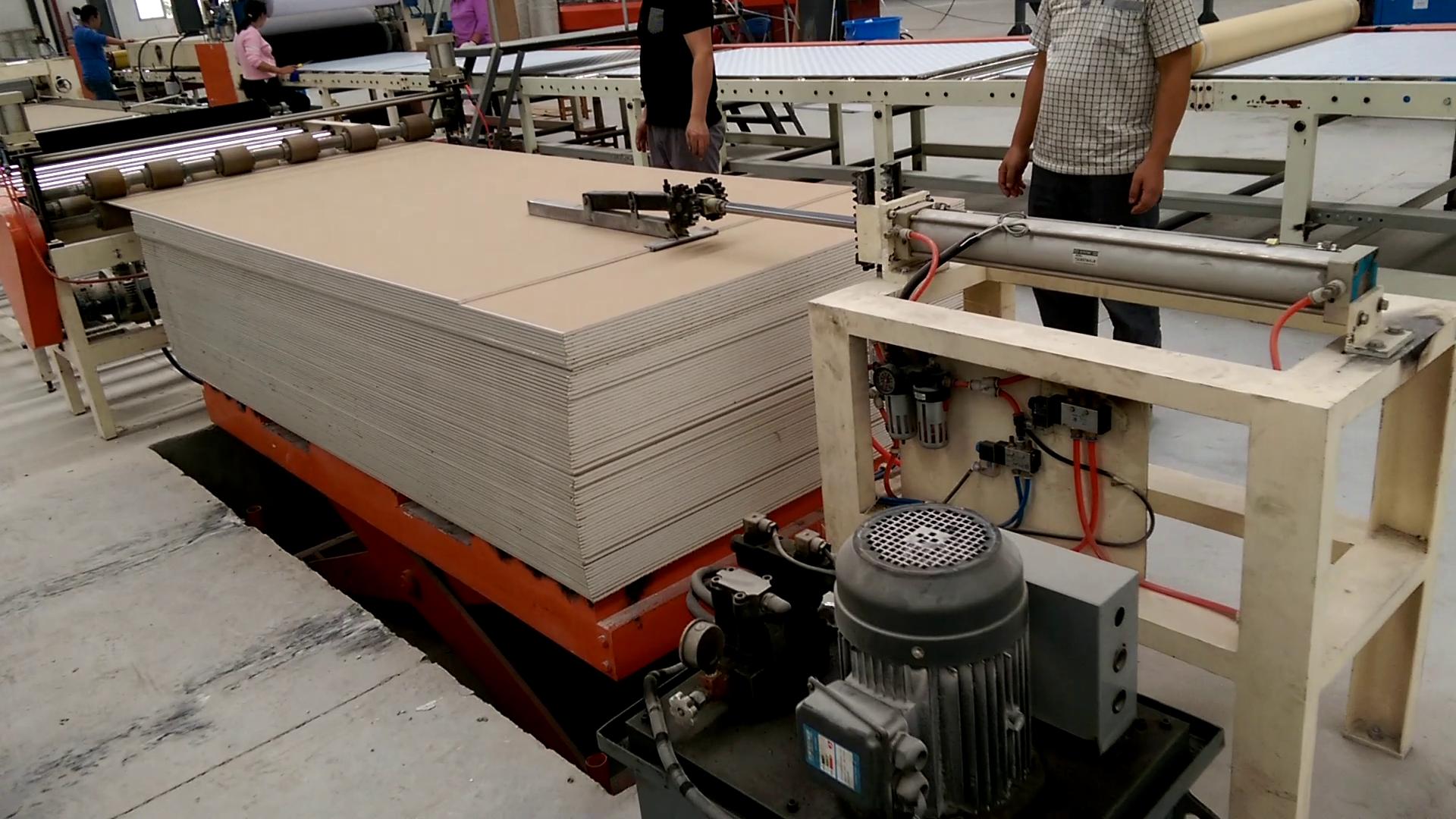

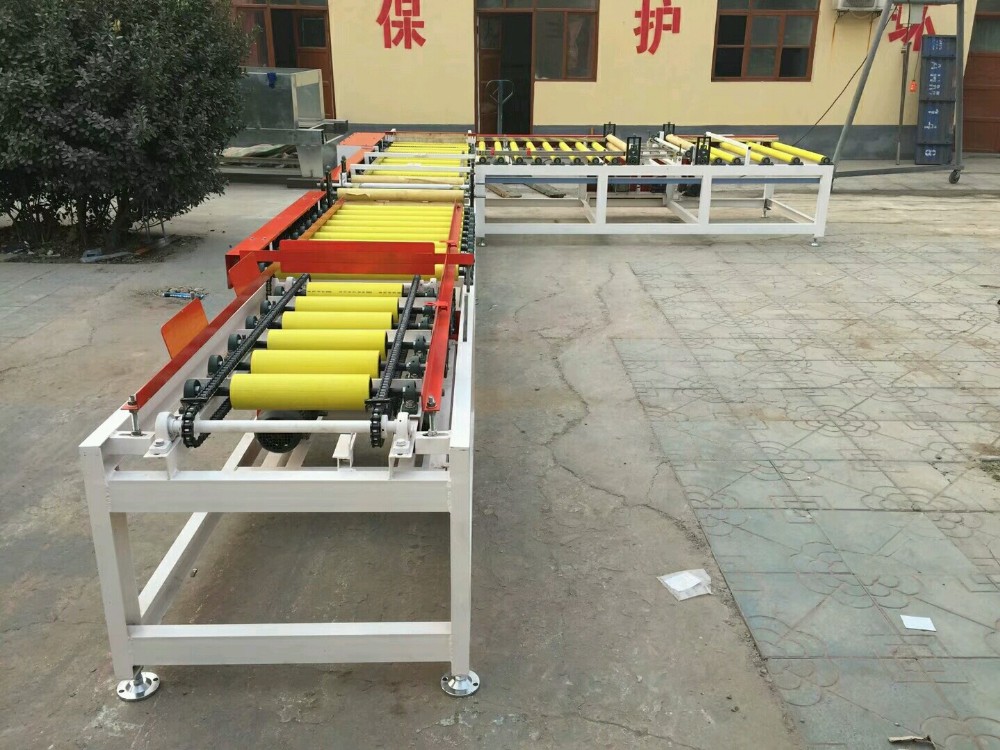

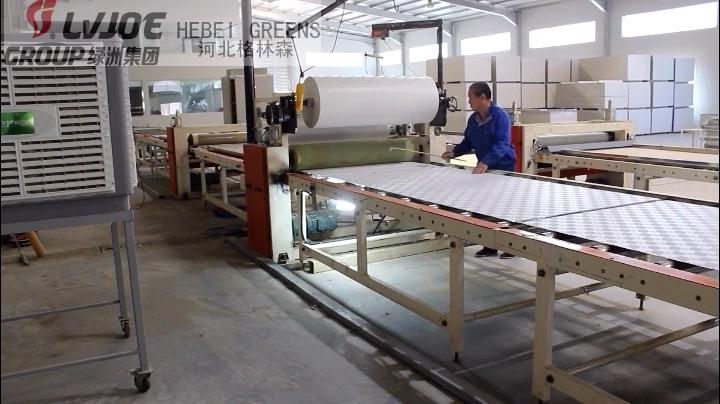

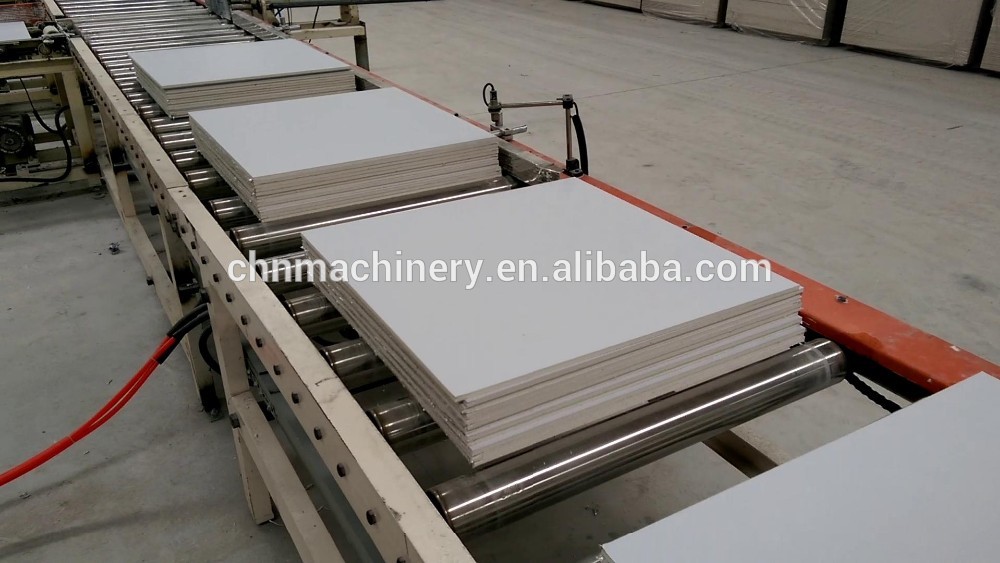

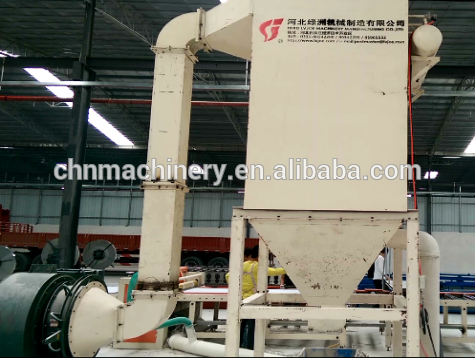

  1. gypsum ceiling board Lamination Machine line:       gypsum board lamination machine is to laminate film on gypsum board      lamination width: 1220mm     gypsum board size: 1220*2440mm     glue: specific glue for pvc film and aluminum foil     max sheet speed: 2/15m/min      thickness of sheet: 2-50mm     motor power: 4.5kw coating and lamination part are driven by chain wheel.             2.   Automatic feeding machine     1. push-type     2. suction-type   Two types for choice  Cylinder push, photoelectric control, Max.Cylinder range 700mm. Through the push board platform rubber roller rolling transmission to accelerate speed,with the feature of low cost,economic and affordable (comparing to the suction type),easy to operate,fully automatic feeding.       3. Automatic cutting machine     This machine is used for cutting the laminated gypsum boards to a size of board according to saw gauge standard. First, put board to delivery roll, then come to the cutting system for the first time, and it turns to cutting system for the second time though delivery roll, then come to the board. It can be made a set of pulsed sack-duster for requirements.      4. Automatic sealing machine    right angle type gypsum board sealing machine  This machine is a gypsum board ceiling decoration edging equipment, PLC photoelectric automatic control, high speed, high capacity. Edging tight and firm. Less investment in equipment and quick. It is a board(plasterboard), Hemming preferred equipment.        5. Automatic shrinking machine    Heat shrinking machine doing the heats shrinkable packaging for gypsum board after the  completion of the sealing and cutting edge, using infrared ray heating for the film contraction.        6.electrostatic pulse bag style dust collector 1. Usage:  The machine is used in the dust collector of the automatic cutter of the laminated gypsum board.It equipped with big sized dust exhaust fan and dust exhaust pipe. It can efficiently reach to the purpose of the dust exhausting. 2. Machine composition:  Dust collector frame, one set of main machine, one set of dust collector pipe, one set of dust collector motor,dust collector bag,dedusting frame,pulse controller.     7. laminating pvc pictures show:              Company Information Established in 1998. A large manufacturer of integrated supply dedicated in researching,manufacturing, trading of building material machinery and construction materials . CE approved by the EU  ISO 9001 certificate  professional team and rich experience, can give you the best price,  the long service life                  Best regards  Maisie zhang Skype: lvjoecn Email: lvjoe2 AT china-machines.com.CN Whatsapp: +8618032163245

Contact us if you need more details on ceiling board making machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about pvc ceiling making machines、gypsum cornice making machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
