Pls tell us your detailed requirements, we will design the most suitable line for you. Full-automatic Gypsum Ceiling Board Lamination machine

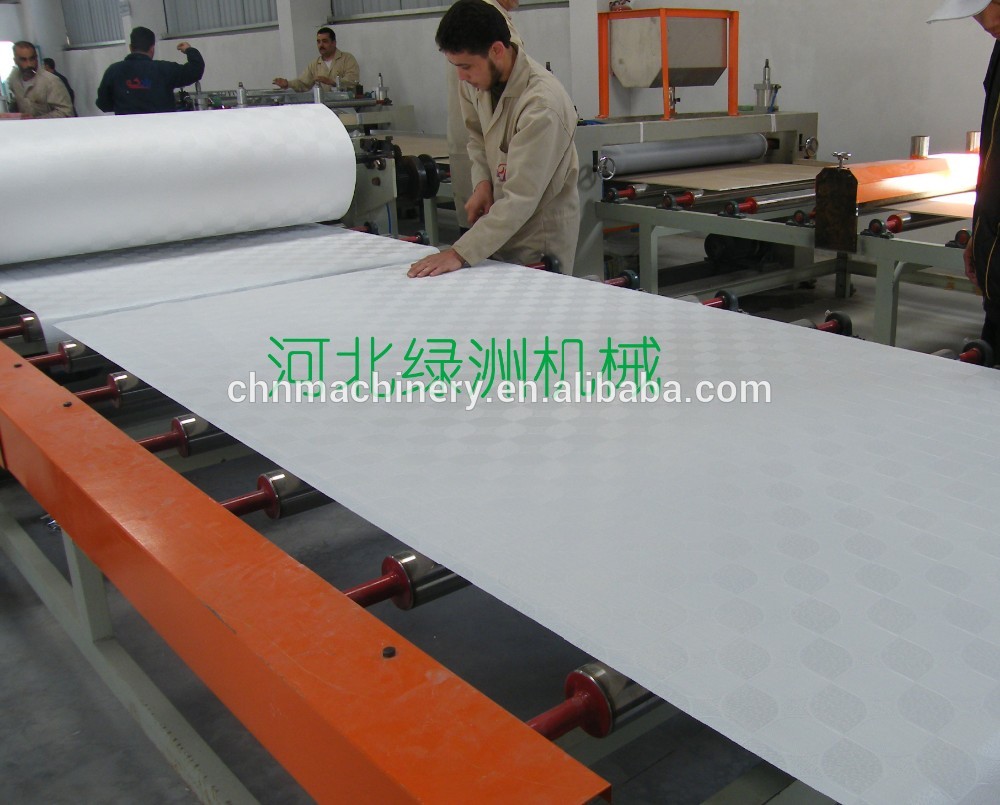

Product Description Introduction and Usage The laminating machine is used to paste the decorative film and boards Together. The films can be with the features of highly waterproof, moisture-proof, flame-resist, heat-resist, warm-keeping, radiation proof, anti-sagging, non-deformed and so on. Laminated gypsum board is not only well- shaped, high intensive, durable in use, non-poisonous, but also good for adjusting inside room temperature, and keeping health for human being. No doubt it is an ideal green construction material, which is commonly used in public area, such as shopping mall, station, and casino. It is not a kind of art, but excel as art. Elegant in design, unique in pattern. The machine is fit for the surface decorative materials, such as pasted and compound Decorative film and decorative paper, etc. The suitable boards include PVC baseboard, low foaming Board ,gypsum board, wood board, sectional boards, etc.
Flowchart Automatic board feeding——pre dusting——coating——drying and conveying —— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)

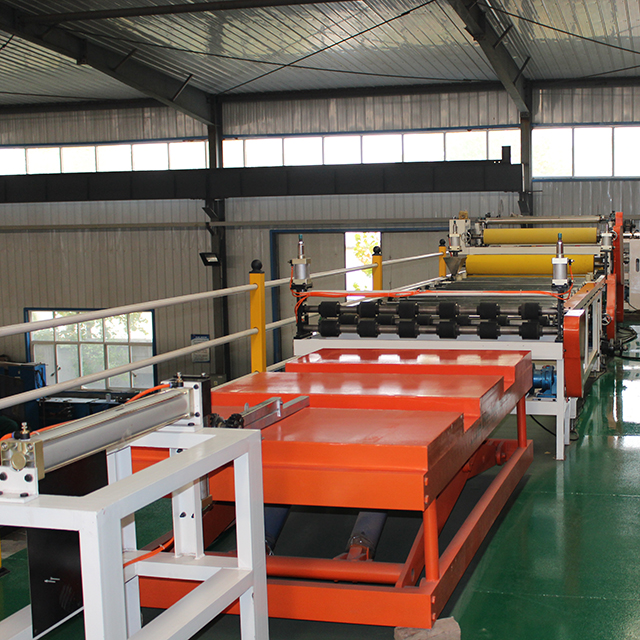

Main components of this production line Automatic board feeding device: The device is divided into suction-type and push-type. Suction-type adopts Single side suction way to feed kinds of plasterboard into the next production step. It can achieve the continuous production without hurting the board.Easy to operate with reliable performance. Push-type :Cylinder push, photoelectric control, Max. Cylinder range 700mm.Through the push board platform rubber roller rolling transmission to accelerate speed ,with the feature of low cost ,economic and affordable (comparing to the suction type),easy to operate, fully automatic feeding.
Push-type Lamination machine

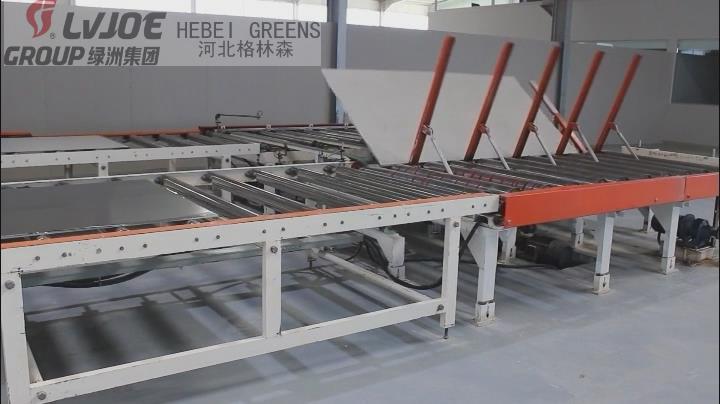

Automatic over-turning machine Can save labor cost and improve efficiency.

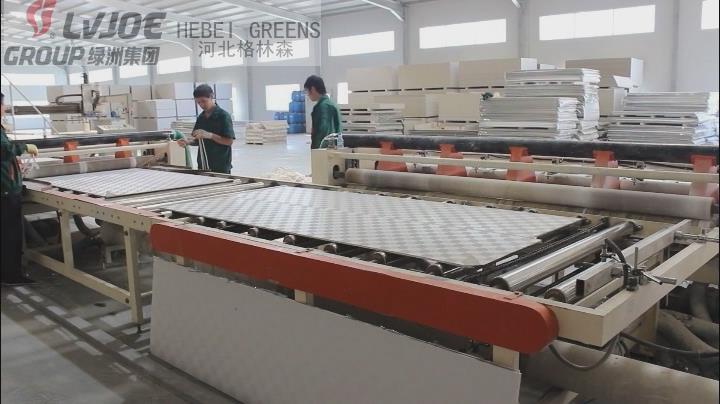

Cutting machine 1. Size of gypsum board :1220*2400mm 2. Size of finished gypsum board :600*600 3. Cutting speed :15m/min adjustable 4. Cutting knife : three in portrait, five in lateral

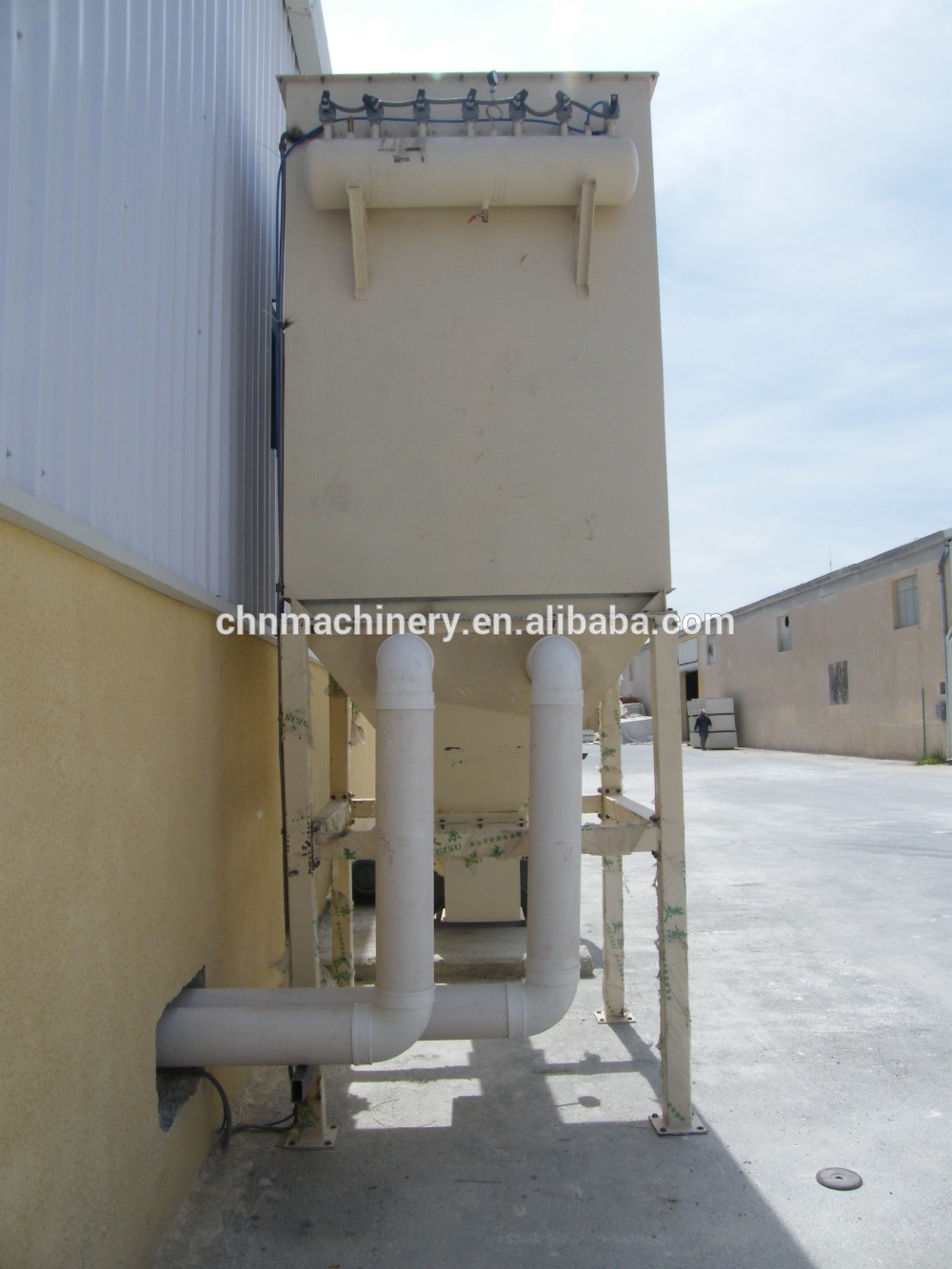

Electrostatic pulse bag style dust collector corollary equipment of Cutting Machine. Provide a clean working environment. Usage: The machine is used in the dust collector of the automatic cutter of the laminate gypsum board, It is equipped with big sized dust exhaust fan and dust exhaust pipe. It can efficiently reach to the purpose of the dust exhausting. Machine composition:Dust collector frame, one set of main machine, one set of dust collector pipe, one set of dust collector moto, dust collector bag, dedusting frame, pulse controller, etc.
Use of Gypsum Ceiling Board
