Big Type Hydraulic Shearing Machine,Plate Shear Machine,Metal Cutter Machine

Product Description

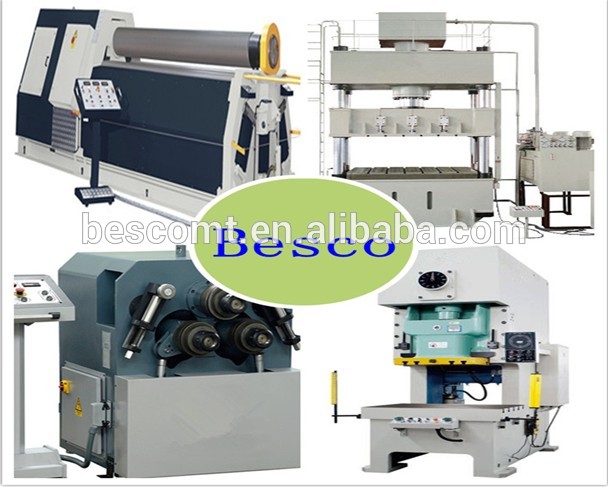

Our Company Other Main Products  Big Type Hydraulic shearing machine,Plate Shear Machine,Metal Cutter Machine

performance characteristic

(1).The frame is welded construction with steel plate,Vibration to eliminate stress,With sufficient rigidity  and high strength,steady and reliable performance,easy operation and maintenance. (2).Hydraulic drive,swing beam,the return of the knife beam is smooth and prompt by nitrogen cylinder.

The back gauge

The back gauge is motorized adjustable,The value is shown on the control on the front of the machine, Adjusting the gap between blade is portable and prompt,The value of the gap is indicated on a dial.

The cutting time and Safety

(1).The cutting times are shown in the control on the front of the machine,Equipped with lighting-alignment device,protective fence and safety inter-locker to ensure the operation safety. (2).Protective fence and the safety interlocker to ensure the operation safety. Power supply switch that  is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up.  Protecting barrier with safety interlocker is mounted on the back of the machine. Another, there are  travel limit protection and foot pedestal mounted emergency off switch.

The blade clearance and the blade

(1).The adjustment of the gap between tools can be showed on an indicating dial. (2).Adopt handwheel to rapidly and accurately adjust the blade clearance (3).The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality. (4).Light alignment device eases drawing line for cutting, Standard front support sheet frame,  A set of standard blades

The electrics and hydraulic

European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.

The shearing angle

Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear  much thicker sheet metal.

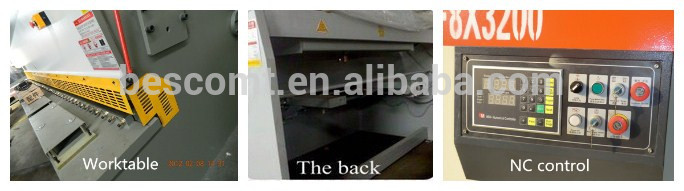

NC control

Front Operated Motorised Back gauge with digital readout display-Estun E10s, stroke-Range 10 to 750 mm.

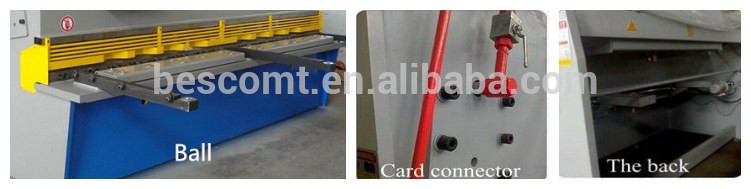

Ball

Rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.   Hydraulic Shearing Machine Parameters
Model

Cutting



thickness

(mm)

Cutting



width

(mm)

Cutting



angel

(°)

Travel



times

(min-1)

Back gauge



range

(mm)

Anti-strength

of  plate

(N/mm2)

Main



power

(Kw)

QC12Y-4*5000 4 5000 1.5 10 20-500 450 7.5
QC12Y-6*2500 6 2500 1.5 18 20-500 450 7.5
QC12Y-6*3200 6 3200 1.5 14 20-500 450 7.5
QC12Y-6*4000 6 4000 1.5 12 20-500 450 7.5
QC12Y-6*6000 6 6000 1.5 8 20-500 450 11

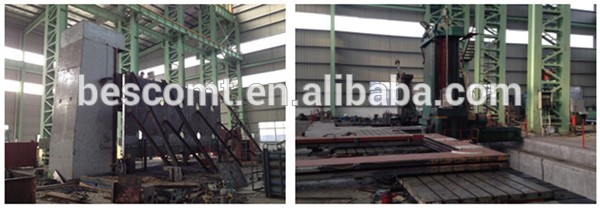

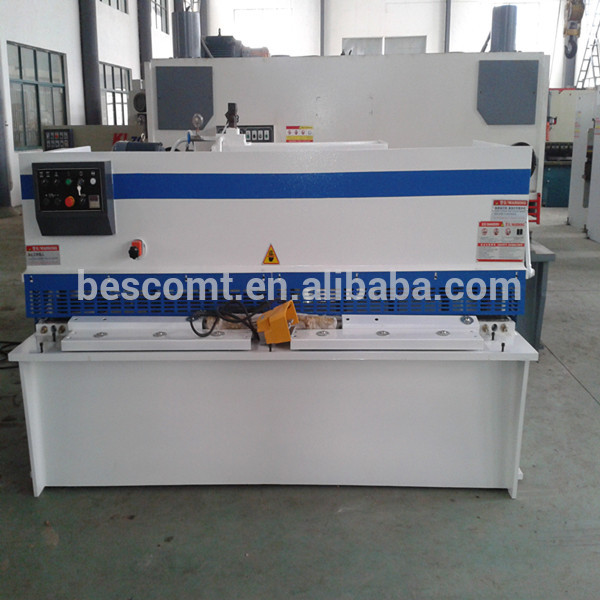

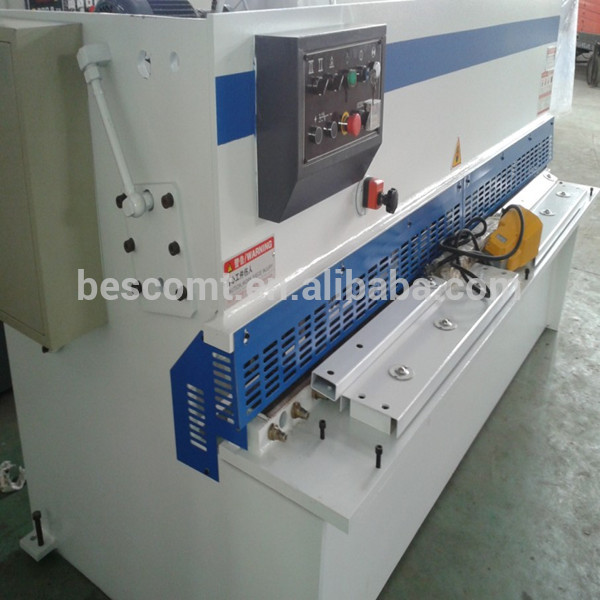

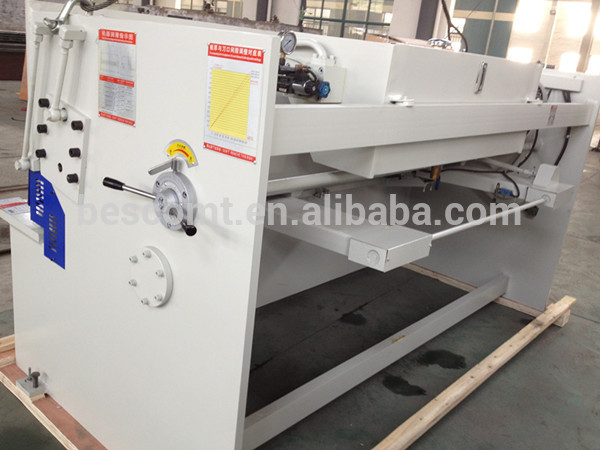

Hydraulic Shearing Machine Detail Factory production and processing equipment Hydraulic Shearing Machine Pictures

Contact us if you need more details on Big Type Hydraulic Shearing Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Plate Shear Machine、Metal Cutter Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
