Section Bending Machine Pipe Profile Bending Machine

Product Description

Our Company Main Products    section bending machine,Pipe Profile Bending Machine

Introduction

Hydraulic 3 roller profile/ section bending machine, which mainly use in various steel profile bending.  It can roll " O " spiral and etc. shape work pieces. It is widely in petrol, chemical, shipyard, metal working and machine manufacturing industries.Three rollers are main droved,can do the prebending,through  adjusting the guide rollers.it is easy to correct the deformation from the bending process.

Features

(1)Uses the microcomputer control, automatic bending; (2)Safety: the emergency stop button on the bending arm; (3)Dialogue operation, easy to study and understand; (4)High pipe-bending precision up to ±0.15°; (5)1000 groups pipe-bending information storage, all angles work forms a coherent whole; (6)The mandrel automatically in and out, saving much time; (7)Suitable for bending steel pipe, stainless steel pipe, copper pipe, aluminum pipe, etc; (8)Can install auxiliary push die, low returning-core function, can bend thin pipes; (9)Special fitting: special mold, anti-wrinkle board, auxiliary push installation, etc.

Quality guarantee

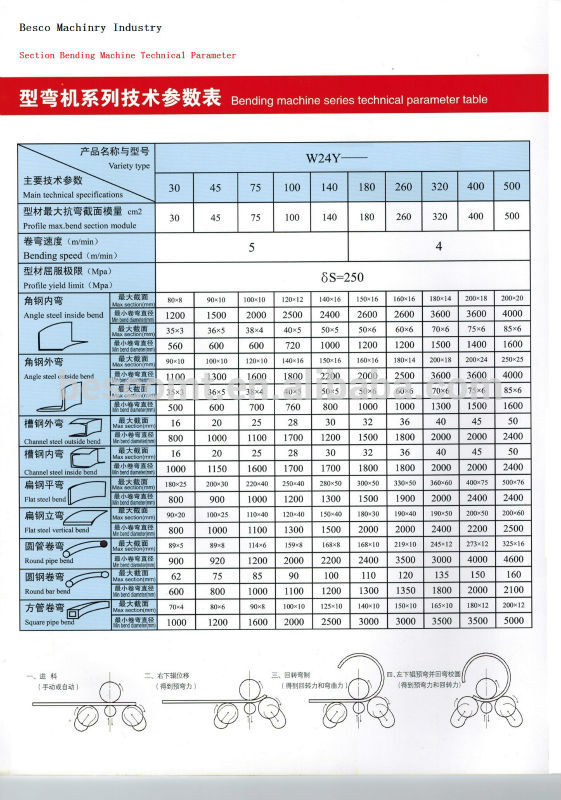

(1) Factory guarantees machinery well packed and testing qualified before shipment.  (2) Factory guarantees all the goods are brand-new; no defects for the specifications or materials used.  (3) 1-year quality warranty after customer accepts the inspection for machinery’s trial operation.  Section Bending Machine Parameters
Model W24S-6 W24S-16 W24S-30

Max. Anti-Winding Cass-Section Molds (cm3)

6 16 30

Winding Speed (m/min)

4 3 3

Yield Strength (MPa)

250

Angle Steel

Internal Winding

Max. Cross – Section(mm)

40*5 70*8 75*10

Min. Winding Die. (mm)

800 1000 1200

Min. Cross - Section(mm)

20*3 30*3 35*3

Min. Winding Die. (mm)

400 550 560

Angle Steel

Eternal Winding

Max. Cross – Section(mm)

50*5 75*10 90*10

Min. Winding Die. (mm)

800 1000 1100

Min. Cross - Section(mm)

20*3 30*3 35*3

Min. Winding Die. (mm)

400 550 500

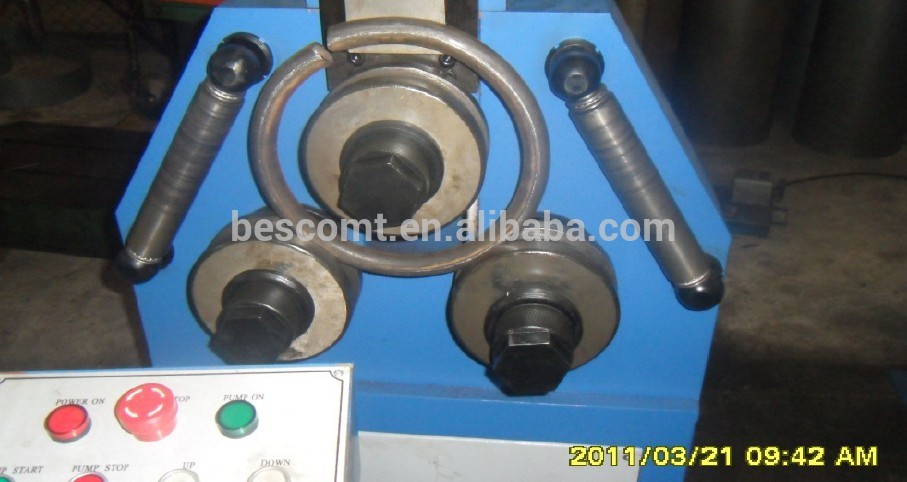

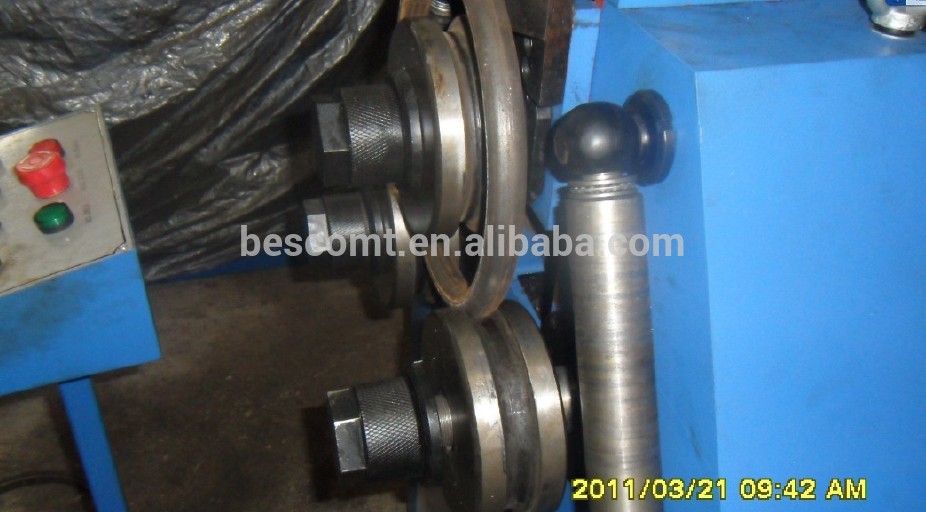

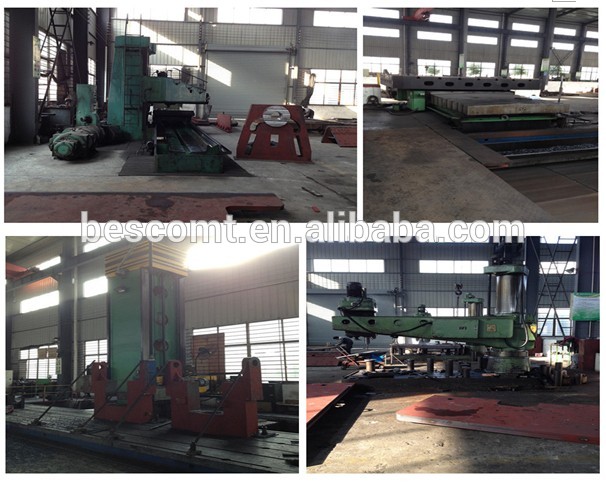

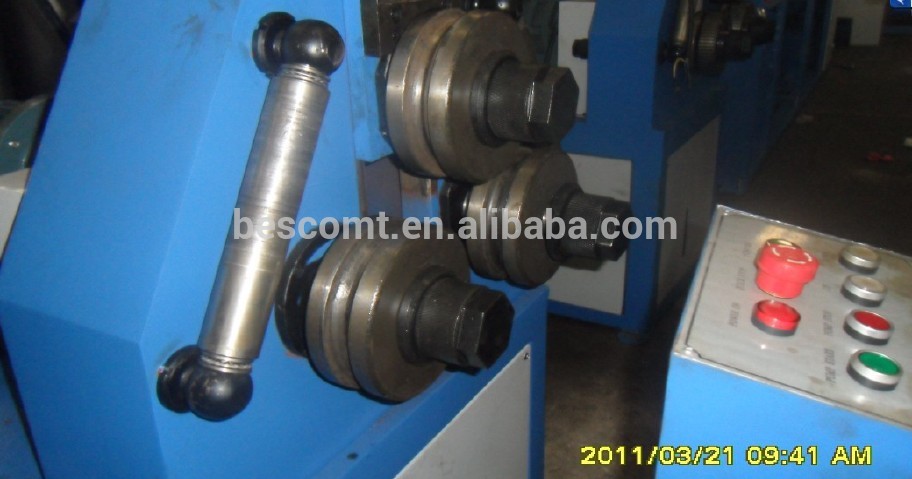

Factory production and processing equipment   Section Bending Machine Picture

Contact us if you need more details on section bending machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about profile bending machine、pipe section bending machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
